FiberPrinting™
Alva’s next-gen electric motors & propulsion systems are manufactured by our patented FiberPrinting™ technology. This groundbreaking & 6 time patented process enables us to rapidly design & manufacture ironless & slotless windings with high copper fill factor for any electric motor or generator, setting a new standard in precision, torque-density & adaptability.
.png)
The Origin
I'm Jørgen Selnes, CEO & co-founder of Alva. Let's rewind to where it all started, in my parents' garage in Oslo, Norway, while I was still studying at NTNU. What began as a passion project grew into a journey of innovation in electric motor technology. With inspiration & support from great team members, we transformed our startup dreams into the Alva powerhouse.
Innovative manufacturing of stators
FiberPrinting™ is an industrial winding method that allows for continuous winding of stator mats for ironless & slotless rotary & linear motors. This method maximizes copper fill factor & enable precise customization of size & stator configuration, resulting in the optimal combination of torque-density & precision in any size & form-factor.
.avif)
<svg width="100%" height="100%" viewBox="0 0 29 22" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M15.7891 20.2541L22.1577 12.8242C22.9946 11.8476 22.9946 10.4066 22.1577 9.43L15.7891 2M21.0039 20.2541L27.3725 12.8242C28.2095 11.8476 28.2095 10.4066 27.3725 9.43L21.0039 2M16.8942 12.8446L11.2322 19.3154C10.1933 20.5029 8.34622 20.5029 7.30722 19.3154L1.64522 12.8446C0.784925 11.8615 0.784925 10.3933 1.64522 9.4102L7.30722 2.9394C8.34622 1.752 10.1933 1.752 11.2322 2.9394L16.8942 9.4102C17.7545 10.3933 17.7545 11.8615 16.8942 12.8446Z" stroke="currentColor" stroke-width="1.7" stroke-linecap="square"/> </svg>
60% Copper Fill Factor
<svg width="100%" height="100%" viewBox="0 0 29 29" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M2.35 3.7C3.0956 3.7 3.7 3.0956 3.7 2.35C3.7 1.6044 3.0956 1 2.35 1C1.6044 1 1 1.6044 1 2.35C1 3.0956 1.6044 3.7 2.35 3.7Z" fill="currentColor"/> <path d="M2.35 28.0008C3.0956 28.0008 3.7 27.3964 3.7 26.6508C3.7 25.9052 3.0956 25.3008 2.35 25.3008C1.6044 25.3008 1 25.9052 1 26.6508C1 27.3964 1.6044 28.0008 2.35 28.0008Z" fill="currentColor"/> <path d="M26.6508 3.7C27.3964 3.7 28.0008 3.0956 28.0008 2.35C28.0008 1.6044 27.3964 1 26.6508 1C25.9052 1 25.3008 1.6044 25.3008 2.35C25.3008 3.0956 25.9052 3.7 26.6508 3.7Z" fill="currentColor"/> <path d="M2.3496 26.6496V3.1596C2.3496 2.7123 2.7123 2.3496 3.1596 2.3496H26.6496M21.25 26.65H25.84C26.2874 26.65 26.65 26.2874 26.65 25.84V21.25M26.6504 7.75V10.45M26.6504 14.5V17.2M7.75 26.6504H10.45M14.5 26.6504H17.2M2.35 3.7C3.0956 3.7 3.7 3.0956 3.7 2.35C3.7 1.6044 3.0956 1 2.35 1C1.6044 1 1 1.6044 1 2.35C1 3.0956 1.6044 3.7 2.35 3.7ZM2.35 28.0008C3.0956 28.0008 3.7 27.3964 3.7 26.6508C3.7 25.9052 3.0956 25.3008 2.35 25.3008C1.6044 25.3008 1 25.9052 1 26.6508C1 27.3964 1.6044 28.0008 2.35 28.0008ZM26.6508 3.7C27.3964 3.7 28.0008 3.0956 28.0008 2.35C28.0008 1.6044 27.3964 1 26.6508 1C25.9052 1 25.3008 1.6044 25.3008 2.35C25.3008 3.0956 25.9052 3.7 26.6508 3.7Z" stroke="currentColor" stroke-width="1.7" stroke-linecap="square"/> </svg>
Custom Shape & Size
<svg width="100%" height="100%" viewBox="0 0 23 29" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M22 1V28M11.5 1V28M1 1V28" stroke="currentColor" stroke-width="1.7" stroke-linecap="square" stroke-linejoin="round"/> </svg>
Non-skewed Windings
Moulding

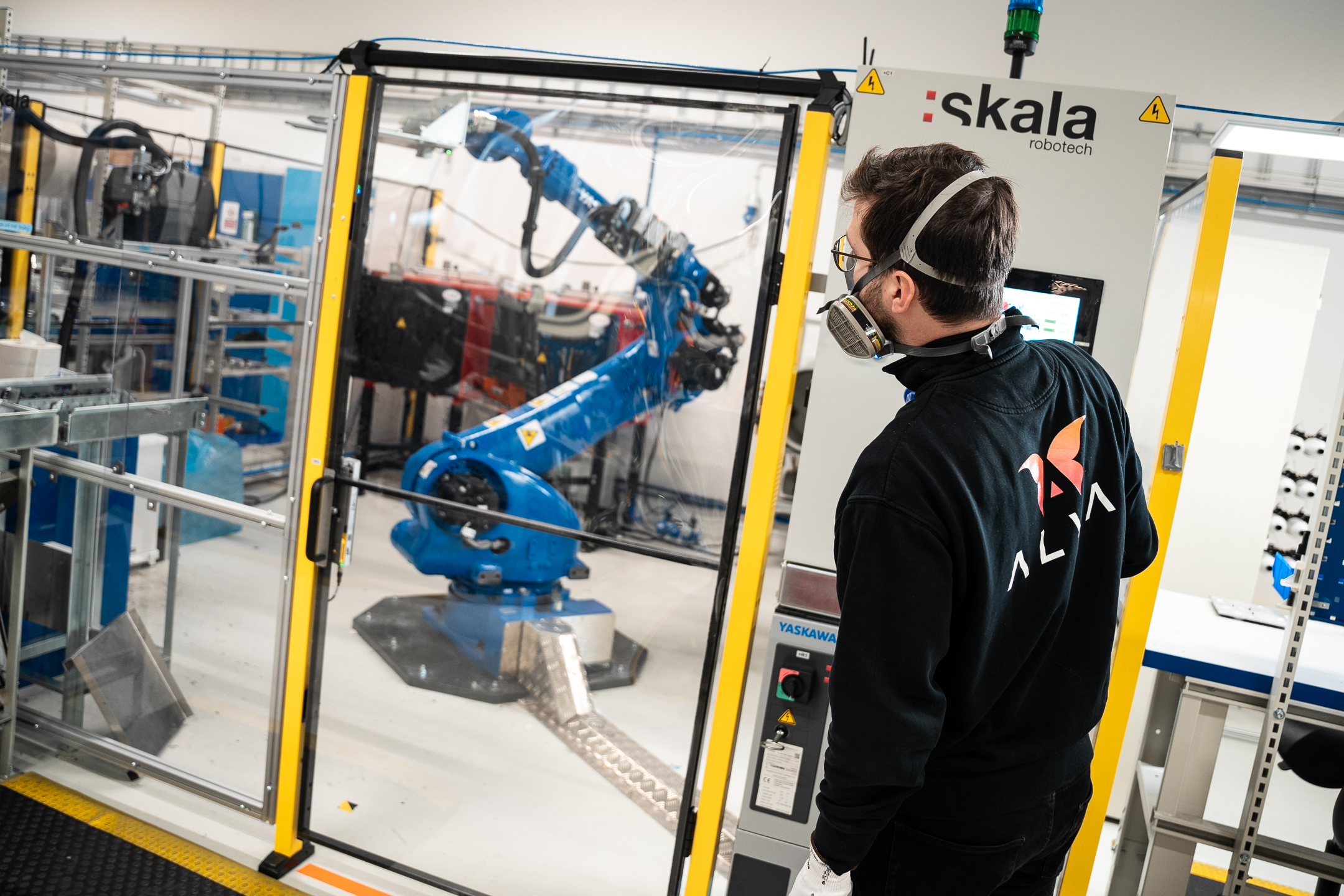

Our automised moulding process transforms the FiberPrinted™ stator mat into a structural component with tight tolerances. Automation is integral, reducing costs & improving quality by minimizing part-to-part deviation.
Additionally, we offer flexibility in resin types, tailoring them to specific applications, such as using fill resin for thermal performance or water-compatible resin for marine applications.
.png)
Custom Shape & Size
The versatility & flexibility of the FiberPrinting™ process allow for the manufacturing of stator mats in a variety of shapes & sizes. These stator mats can be produced in any length, width, thickness, & pole size. Additionally, FiberPrinted™ stator mats can be further processed into both rotary or linear precision motors.
High Copper Fill Factor
The primary limitation of traditional ironless & slotless motors lies in their poor performance in terms of power & torque density. This is mainly attributed to the low copper fill factor, which compromises phase resistance & voltage constant.
FiberPrinting™ addresses this limitation by enabling a high copper fill factor, up to 60%, & short end-windings. These advancements significantly boost the performance of slotless motors, allowing them to even challenge slotted motors in terms of performance.
Non-Skewed Windings
The low copper fill factor is not the sole limitation of traditional ironless & slotless motors. Traditional ironless & slotless winding methods can only produce skewed windings. These skewed windings generate a magnetic field that is misaligned with the rotor's magnetic field, resulting in a lower motor constant (Km).
FiberPrinting™ allows for the production of non-skewed stator windings with a magnetic field that is perfectly aligned with the rotor's magnetic field, massively improving performance in terms of power & torque density.
